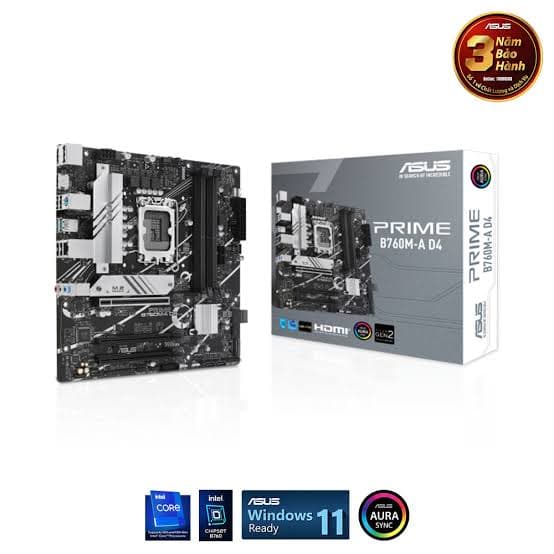

Mainboard ASUS PRIME B760M-A D4
Mainboard ASUS PRIME B760M-A D4 mang chipset Intel B760, hỗ trợ RAM DDR4 lên tới 128 GB và tốc độ OC 5.3 GHz, tích hợp 2 khe M.2 PCIe 4.0 và LAN Realtek 2.5 Gb, kích thước mATX gọn gàng cho mọi build.
3.249.000 ₫
Còn hàng (7 sản phẩm)
Thông số kỹ thuật
| Socket | Intel LGA 1700 |
| Chipset | Intel B760 |
| M.2 slots | 2 x M.2 (Key M) supporting PCIe 4.0 x4, types 2242/2260/2280 |
| RAM slots | 4 x DIMM, Max. 128GB DDR4, supported speeds 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Non‑ECC, Un‑buffered, Dual Channel, XMP support |
| PCIe slots | 1 x PCIe 4.0 x16 (primary), 1 x PCIe 4.0 x16 (supports x4 mode), 1 x PCIe 4.0 x16 (supports x1 mode) |
| SATA ports | 4 x SATA 6Gb/s |
| Bảo hành | 36 Tháng |
| Fan headers | 1 x 4‑pin CPU fan, 1 x 4‑pin CPU OPT fan, 2 x 4‑pin chassis fan |
| Form factor | M-ATX (24.4 cm x 24.4 cm) |
| Mã sản phẩm | MBAS0759 |
| Power connectors | 1 x 24‑pin ATX main power, 1 x 8‑pin +12V CPU power |
| USB internal headers | 2 x USB 3.2 Gen1 headers (support 4 additional ports), 1 x USB 3.2 Gen1 Type‑C connector, 2 x USB 2.0 headers (support 4 additional ports), 1 x USB 2.0 header (1 additional port) |
| Back panel connectors | 2 x USB 3.2 Gen2 Type‑A, 4 x USB 2.0 Type‑A, 1 x DisplayPort, 2 x HDMI, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo |
| Miscellaneous headers | 3 x Addressable Gen2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM (14‑pin), 1 x 20‑3 pin System Panel, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM, 1 x System Panel header with chassis intrude f |
